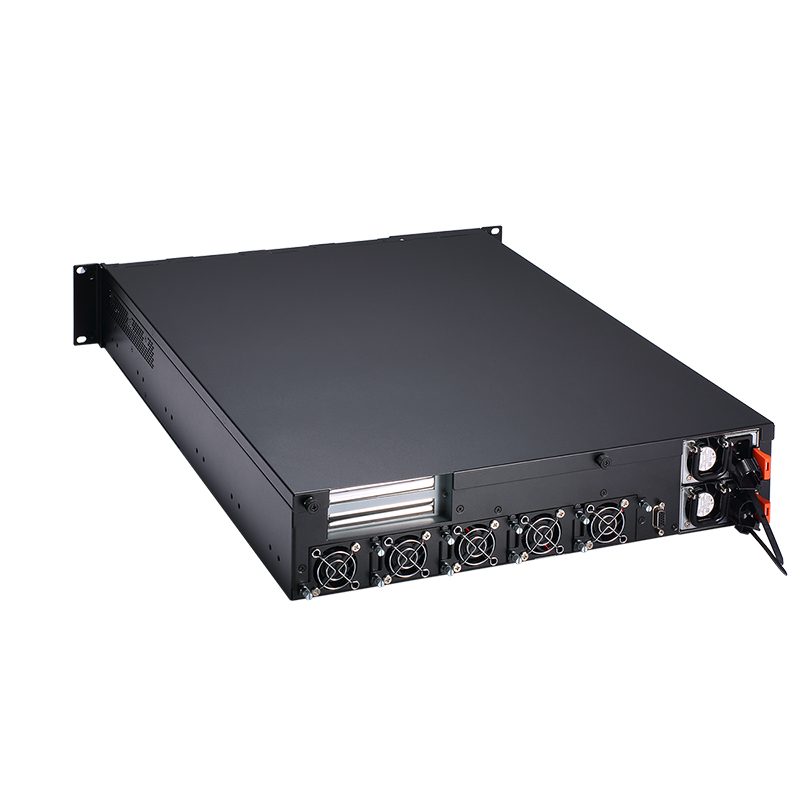

特徴
- Dual CPU sockets for 3rd gen Intel® Xeon® Scalable processors with 8 to 40 powerful cores, up to 270W
- 20 DDR4-3200 R-DIMM for up to 1280GB of memory
- 8 expandable LAN modules in support of 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
- Supports 100Gb Ethernet module with Intel® Ethernet controller E810 (AX93357/AX93358)
- First PCIe 4.0 ready platform
- Supports onboard IPMI (optional)
- Intel® Crypto Acceleration (Intel® C627A)
概要
The FAB101 features one CPU card slot and thirteen 32bit/33MHz PCI slots, and built in a 24-pin ATX power connector and 8-pin connector for thermal detected board. Furthermore, the FAB101 delivers outstanding system performance through high-bandwidth interfaces such as Serial ATA and USB 2.0 high speed peripheral (optional function). It is designed for all of PICMG 1.3 single board computers, and is a perfect fit for AXIOMTEK's SHB100 & SHB110, which are built around the PICMG 1.3 form factor. We also have various 4U-high enclosures, AX6156E, AX6156LE, AX6156LLE, AX6156LLES, AX61400, AX61491, and AX6145, to house the FAB101 and any customer's industrial integrations flexibly.
